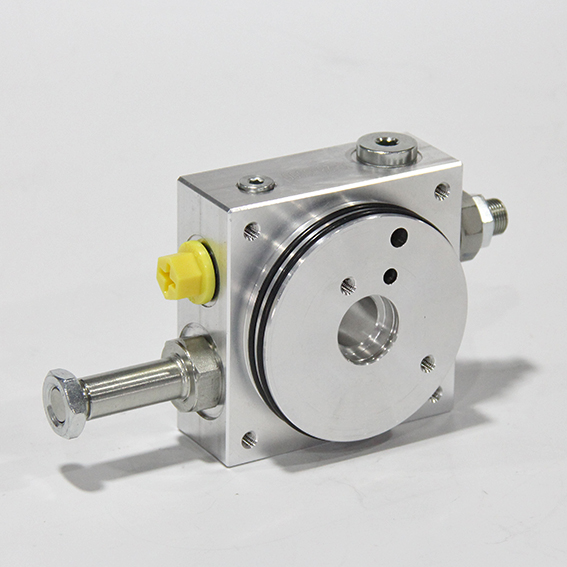

型号/Model：XF29-0000
规格参数/Specification：

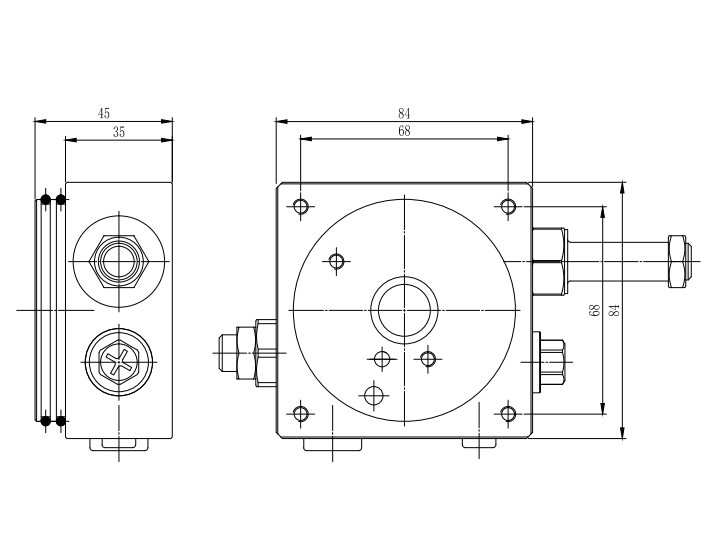

1. 尺寸/Dimensions：84x84x45mm
2. 电磁阀/Solenoid：3/4-∅12.7
3. 溢流阀/Relief Valve：3/4-∅15.9
4. 内置单向阀/Check Valve Inside：G1/4
5. 内置节流阀/Throttle Valve Inside：15.2-12.7
6. 出油口/Oil Port：G1/4
7. 布局/Layout：单向阀与溢流阀180°
180°angle between check valve and relief valve
